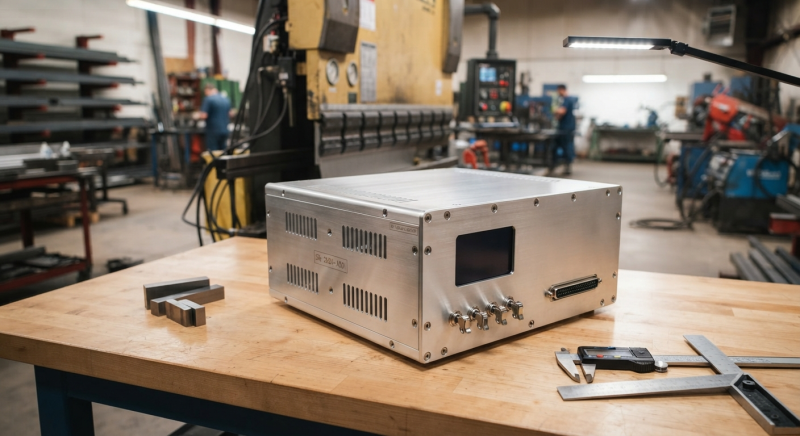

A custom aluminium enclosure is a fabricated housing made to project-specific dimensions rather than a standard catalogue size. We manufacture original aluminium products to customer specifications, so quote accuracy depends on the drawings and requirements supplied.

What Must An Aluminium Enclosure Drawing Include?

Start with overall dimensions, material thickness, alloy if specified, bend radii, tolerances and quantity. Show every opening for cables, switches, vents, fasteners and access panels. If components must align with internal hardware, include mounting-hole positions and the clearances required for assembly and servicing.

Review our custom aluminium fabrication services. Our capability is broad, but we should not guess the electrical rating, cooling requirement or protection class for equipment designed by another party.

• Flat-pattern data: Supply DXF or another agreed cutting file where available, supported by a dimensioned drawing.
• Fold and joint details: Identify seams, welded corners, removable panels, hinges and fastening methods.
• Surface finish: State whether the enclosure requires a mill finish or a nominated post-fabrication finish.

How Do Cut-Outs And Access Requirements Affect The Quote?

Numerous apertures, close tolerances and complex mounting patterns increase programming, cutting and inspection time. Access also affects the design: a panel that is easy to assemble may still be awkward to service once installed. Mark the maintenance direction, door swing, removable components and restricted site clearances.

See how we use CNC routing for custom aluminium panels when projects require repeatable profiles, holes and cut-outs from supplied specifications.

Ventilation requirements must come from the equipment designer or responsible technical adviser. We can fabricate the nominated pattern, but airflow performance, electrical safety and ingress protection should not be invented during quoting.

Why Should The Specification Be Final Before Production?

Late changes to connector locations or internal layouts can make completed panels unusable. A controlled drawing revision, confirmed prototype where appropriate and clear acceptance criteria give both parties a better basis for production.

Quantity also changes the manufacturing approach. A one-off prototype may be suitable for checking fit, access and assembly before a repeat order, while a confirmed production batch can justify more detailed programming and setup. Tell us whether the first unit is a prototype, a replacement for an existing enclosure or part of an ongoing programme for accurate commercial pricing.

Our article on custom-made aluminium products in Melbourne explains why project-specific information matters across original fabrication work.

The Australian Aluminium Council publishes technical resources for broader material decisions. Your designer remains responsible for specifying the enclosure’s operating requirements; our role is to manufacture the agreed aluminium component accurately.

For independent context, consult Australian Aluminium Council technical resources. We apply that reference only within the limits of our product or service role.

Send Us A Quote-Ready Enclosure Package

A photo and rough measurements are rarely enough for a production quote.

Submit your controlled drawings, quantities and finish requirements through our enquiry page. Our Bayswater team will identify missing fabrication details and advise the next practical step.
